import fiftyone as fo
import fiftyone.zoo as foz
from fiftyone.utils.torch import FiftyOneTorchDataset

import utils

import torch
from torch.utils.data import DataLoader
import numpy as np
import torchvision.transforms.v2 as transforms
from torchvision import tv_tensors
import matplotlib.pyplot as plt
import matplotlib.patches as plt_patches
from PIL import Image

torch.multiprocessing.set_start_method('forkserver')

Load Dataset

dataset = foz.load_zoo_dataset("quickstart", overwrite=True)

Overwriting existing directory '/home/jacobs/fiftyone/quickstart'
Downloading dataset to '/home/jacobs/fiftyone/quickstart'
Downloading dataset...
 100% |████|  187.5Mb/187.5Mb [205.8ms elapsed, 0s remaining, 911.3Mb/s]
Extracting dataset...
Parsing dataset metadata
Found 200 samples
Dataset info written to '/home/jacobs/fiftyone/quickstart/info.json'
Loading existing dataset 'quickstart'. To reload from disk, either delete the existing dataset or provide a custom `dataset_name` to use

# make sure it's persistent
print(dataset.persistent)

# if it's not, set this variable to True
if not dataset.persistent:
    dataset.persistent = True

True

Do Your Data Centric Work

some_interesting_view = dataset.take(100)

Transferring to a Torch Dataset and the get_item Argument

In order to transfer to a torch dataset, we most provide a function that transforms FiftyOne Samples into input for the model. We pass this function with the get_item argument. Let’s start with a very simple example that will help us understand what’s happening.

# to best understand what's happening, let's first pass the identity function
def get_item_identity(x):
    return x

torch_dataset = some_interesting_view.to_torch(get_item_identity)

result = torch_dataset[0]
print(type(result))
print(result['id'])
print(result['filepath'])

<class 'fiftyone.core.sample.Sample'>
67be7705acd35912dc493b1e
/home/jacobs/fiftyone/quickstart/data/001312.jpg

The get_item function can be anything that accepts a fiftyone Sample. Here is a simple example:

def simple_get_item(sample):
    return sample['id']

torch_datset = some_interesting_view.to_torch(simple_get_item)

# torch_dataset is now a fully functional torch_dataset.
print(torch_datset[0])

67be7705acd35912dc493b1e

# torch_dataset has the same exact samples as some_interesting_view, down to the order.
assert [res for res in torch_datset] == some_interesting_view.values('id')

Write an actual get_item function

# let's write a standard detection get_item
augmentations = transforms.Compose([
    transforms.CenterCrop(512),
    transforms.ClampBoundingBoxes()
])
def get_item(sample):
    res = {}
    image = Image.open(sample['filepath'])
    og_wh = np.array([image.width, image.height])
    image = tv_tensors.Image(image)
    detections = sample['ground_truth.detections']
    if detections is None:
        detections = []
    detections_tensor = torch.tensor([detection['bounding_box'] for detection in detections]) if len(detections)>0 \
        else torch.zeros((0,4))
    res['box'] = tv_tensors.BoundingBoxes(detections_tensor * torch.tensor([*og_wh, *og_wh]),
        format=tv_tensors.BoundingBoxFormat('XYWH'),
        canvas_size=image.shape[-2:]
    )
    res['label'] = [detection['label'] for detection in detections]
    res['id'] = sample['id']
    image, res = augmentations(image, res)
    return image, res

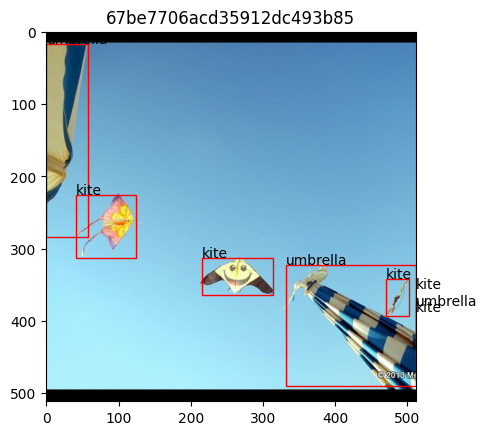

Visualizing the result

# This is also a good opportunity to debug your get_item in case you need to

torch_dataset = some_interesting_view.to_torch(get_item)

# run this a couple of times to look through samples in the dataset
random_index = np.random.randint(0, len(torch_dataset))
image, res = torch_dataset[random_index]
plt.title(res['id'])
plt.imshow(image.permute(1, 2, 0).numpy())
axes = plt.gca()
for b, l in zip(res['box'], res['label']):
    rect = plt_patches.Rectangle((b[0], b[1]),
                                    b[2], b[3],
                                    linewidth=1, edgecolor='r', facecolor='none')
    axes.add_patch(rect)
    axes.annotate(l, rect.get_xy())
plt.show()

Creating a DataLoader

FiftyOneTorchDatasets are compatible with torch DataLoaders, and can be used during training. Here is how you can create a DataLoader:

# We need a new dataset object here. Once we've already sampled from the previous one, we have opened up a DB connection
# making the object unpickleable, and not suitable for multiproccessing use.

# utils.get_item_quickstart is the same get_item as above.
torch_dataset = some_interesting_view.to_torch(utils.get_item_quickstart)
"""
The code we are running is as follows:
def simple_collate_fn(batch):
    return tuple(zip(*batch))
def create_dataloader_simple(torch_dataset):
    dataloader = torch.utils.data.DataLoader(torch_dataset,
                                             batch_size=5,
                                             shuffle=True,
                                             num_workers=2, # we are compatible with many workers
                                             worker_init_fn=FiftyOneTorchDataset.worker_init, # this is required for the dataloader to work
                                             collate_fn=simple_collate_fn)

We are running it from a separate file because Jupyter Notebooks are not compatible with the 'spawn' and 'forkserver' start methods
for code that is written *in* the notebook.
"""
dataloader = utils.create_dataloader_simple(torch_dataset)

"""
Code we are running:
def ids_in_dataloader(dataloader):
    # we can iterate over the dataset like this:
    ids_seen = []
    for images, results in dataloader:
        assert len(images) == 5 # we are actually getting a batch of 5
        ids_seen += [results[i]['id'] for i in range(len(results))]
    return ids_seen
"""
ids_seen = utils.ids_in_dataloader(dataloader)

# confirm we have seen each sample once
from collections import Counter
ids_with_counts = Counter(ids_seen)
assert set(ids_with_counts.keys()) == set(some_interesting_view.values('id'))
assert np.all(np.array(list(ids_with_counts.values())) == 1)

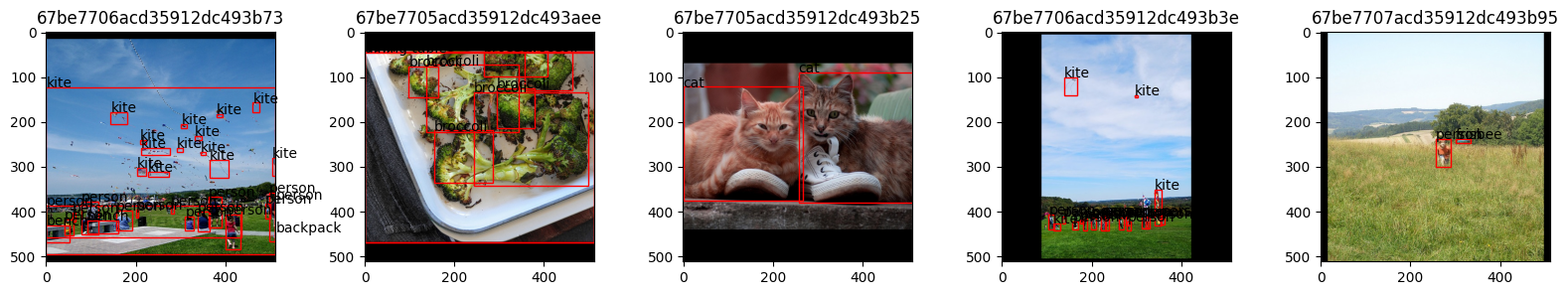

# visualizing results, run this a couple of times to see different batches
iterator = iter(dataloader)

image, res = next(iterator)

fig, axes = plt.subplots(1, len(image), figsize=(4 * len(image), 3))

for i, img in enumerate(image):
    axes[i].set_title(res[i]['id'])
    axes[i].imshow(img.permute(1, 2, 0).numpy())
    for b, l in zip(res[i]['box'], res[i]['label']):
        rect = plt_patches.Rectangle((b[0], b[1]),
                                        b[2], b[3],
                                        linewidth=1, edgecolor='r', facecolor='none')
        axes[i].add_patch(rect)
        axes[i].annotate(l, rect.get_xy())

plt.show()
