Loading and Exploring Datasets#

This notebook is a modification of the original Getting Started Notebook for the Visual Anomaly and Novelty Detection (VAND) 2025 Challenge at CVPR!

This challenge, sponsored by Voxel51, Anomalib, and MVTec, focuses on advancing Visual Anomaly Detection in real-world industrial scenarios. Here you’ll work with the newly released MVTec AD 2 dataset, featuring challenging real-world conditions, distribution shifts, and unexpected defect types.

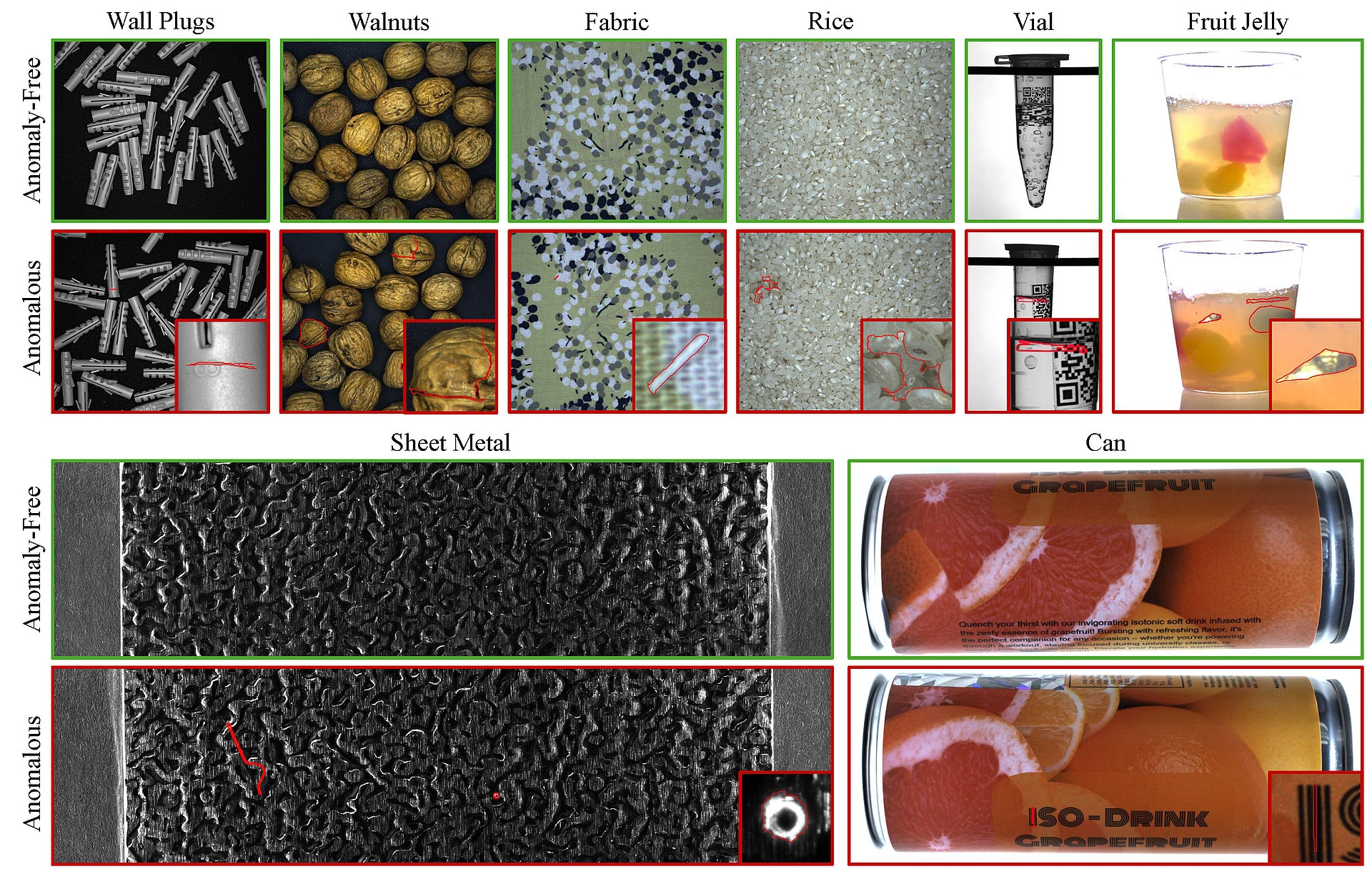

Track 1 Dataset (MVTec AD 2): Explore here
Challenge Registration & Info: Join the challenge
Join the Community: FiftyOne Discord → #cvpr-challenge-vand3-0

Related Documentation

Anomalib: GitHub Repo
MVTec AD2: Download Link
FiftyOne: https://docs.voxel51.com/

Let’s dive into anomaly detection with top-tier tools and datasets!

Load MVTec AD 2 Using Anomalib#

This section performs an essential step in preparing or visualizing the dataset.

Note: You will need to use the Anomalib library for this notebook.

[ ]:

# Using Anomalib you can also import MVTec AD 2
from anomalib.data import MVTecAD2

OBJECTS_LIST = [
    'can',
    'fruit_jelly',
    'sheet_metal',
    'wallplugs',
    'fabric',
    'woriceod',
    'vial',
    'walnuts',
]
OBJECT = "sheet_metal" ## object to select

# Create datamodule with public test set
datamodule = MVTecAD2(
    root="path/to/mvtec_ad_2",  # <-- replace with your dataset path
    category=OBJECT,            # <-- set the object/category as needed
    train_batch_size=32,
    eval_batch_size=32,
)

# Access different test sets
datamodule.setup()
public_loader = datamodule.test_dataloader()  # returns loader based on test_type
#private_loader = datamodule.test_dataloader(test_type="private")
#mixed_loader = datamodule.test_dataloader(test_type="private_mixed")

Dataset Loading and Preprocessing Functions#

This block defines several utility functions and logic to structure and load the MVTec AD 2 dataset into a FiftyOne dataset, enriching it with custom fields like defect category, shift type, and segmentation masks.

Key Components:

explore_dataset_structure: Recursively walks through the dataset directory and prints its structure as a DataFrame.
extract_shifting_info: Determines the type of distribution shift (e.g., overexposed, underexposed) from the image filename.
load_segmentation_mask: Loads a mask image as a NumPy array in grayscale.
find_segmentation_mask: Finds the path to the ground truth segmentation mask corresponding to a bad image.
get_fiftyone_dataset: Creates a new FiftyOne dataset named "mvtecad2" and populates it with:
- Image samples and their metadata
- Classification labels for category and defect
- Folder type and shift type information
- Segmentation masks for defective samples if available

The resulting dataset can be explored using FiftyOne’s App for deeper analysis and visualization of anomalies and their spatial locations.

[ ]:

import os
import cv2
import numpy as np
import pandas as pd
import fiftyone as fo
import fiftyone.core.dataset as fod
import fiftyone.core.metadata as fom
from fiftyone.core.labels import Segmentation, Classification
from glob import glob

def explore_dataset_structure(base_path):
    """Returns dataset folder structure as a dictionary and prints it."""
    dataset_metadata = []
    for root, dirs, files in os.walk(base_path):
        level = root.replace(base_path, '').count(os.sep)
        folder_name = os.path.basename(root)
        dataset_metadata.append({'Level': level, 'Folder': folder_name, 'Path': root, 'Num_Files': len(files)})
    df = pd.DataFrame(dataset_metadata)
    print(df)
    return df

def extract_shifting_info(image_name):
    """Extracts shifting type from image filename."""
    if 'regular' in image_name:
        return 'regular'
    elif 'overexposed' in image_name:
        return 'overexposed'
    elif 'underexposed' in image_name:
        return 'underexposed'
    elif 'shift' in image_name:
        return f'shift_{image_name.split("_")[-1].split(".")[0]}'
    return 'unknown'

def load_segmentation_mask(mask_path):
    """Loads the segmentation mask as a NumPy array."""
    if os.path.exists(mask_path):
        mask = cv2.imread(mask_path, cv2.IMREAD_GRAYSCALE)
        if mask is not None:
            return mask
    return None

def find_segmentation_mask(image_path):
    """Finds the corresponding segmentation mask for a given bad image."""
    mask_path = image_path.replace("/bad/", "/ground_truth/bad/")
    if os.path.exists(mask_path):
        return mask_path
    return None

def get_fiftyone_dataset(base_path):
    """Creates and loads dataset into FiftyOne."""
    dataset_name = "mvtecad2"
    if dataset_name in fo.list_datasets():
        fo.delete_dataset(dataset_name)

    dataset = fod.Dataset(name=dataset_name, persistent=True)
    dataset.add_sample_field("category_label", fo.EmbeddedDocumentField, embedded_doc_type=Classification)
    dataset.add_sample_field("folder_type", fo.StringField)
    dataset.add_sample_field("defect_label", fo.EmbeddedDocumentField, embedded_doc_type=Classification)
    dataset.add_sample_field("shift_type", fo.StringField)
    dataset.add_sample_field("segmentation", fo.EmbeddedDocumentField, embedded_doc_type=Segmentation)

    for category_label in os.listdir(base_path):
        category_path = os.path.join(base_path, category_label)
        print("Category", category_label, category_path)
        if os.path.isdir(category_path):
            for folder_type in os.listdir(category_path):
                folder_path = os.path.join(category_path, folder_type)
                print("Folder_Type", folder_type, folder_path)
                if os.path.isdir(folder_path):
                    for defect_label in os.listdir(folder_path):
                        defect_path = os.path.join(folder_path, defect_label)
                        print("Defect", defect_label, defect_path)
                        if os.path.isdir(defect_path):
                            for img in glob(os.path.join(defect_path, '*.png')):
                                img_name = os.path.basename(img)
                                shift_type = extract_shifting_info(img_name)
                                print("Image_Sample", img_name, shift_type)
                                metadata = fom.ImageMetadata()
                                sample = fo.Sample(filepath=os.path.abspath(img),
                                                   tags=[defect_label],
                                                   metadata=metadata,
                                                   category_label=Classification(label=str(category_label)),
                                                   folder_type=folder_type,
                                                   defect_label=Classification(label=str(defect_label)),
                                                   shift_type=shift_type)

                                # Add segmentation mask if applicable
                                if defect_label == 'bad' and 'test_public' in folder_type:
                                    mask_path = find_segmentation_mask(img)
                                    if mask_path:
                                        mask_array = load_segmentation_mask(mask_path)
                                        if mask_array is not None:
                                            sample["segmentation"] = Segmentation(mask=mask_array)

                                dataset.add_sample(sample)

                    # Ensure `ground_truth/bad` folder is processed correctly
                    ground_truth_path = os.path.join(folder_path, "ground_truth", "bad")
                    if os.path.exists(ground_truth_path):
                        for mask_file in glob(os.path.join(ground_truth_path, '*.png')):
                            mask_name = os.path.basename(mask_file).replace("_mask", "")  # Remove _mask suffix if present
                            corresponding_img = os.path.abspath(os.path.join(folder_path, "bad", mask_name))
                            print("GT", mask_name, corresponding_img)
                            # Debugging Output
                            print(f"GT Processing: Mask {mask_name} → Image {corresponding_img}")

                            if os.path.exists(corresponding_img):
                                mask_array = load_segmentation_mask(mask_file)
                                if mask_array is not None:
                                    matched_samples = dataset.match({"filepath": corresponding_img})
                                    if len(matched_samples) > 0:
                                        sample = matched_samples.first()
                                        sample["segmentation"] = Segmentation(mask=mask_array)
                                        sample.save()
                                        print(f"✓ Segmentation mask added for {corresponding_img}")
                                    else:
                                        print(f"⚠ Warning: No matching sample found for {corresponding_img}")
                            else:
                                print(f"⚠ Warning: Corresponding image not found for mask {mask_file}")
    return dataset

Load and Explore the MVTec AD 2 Dataset#

This section defines the path to the MVTec AD 2 dataset, explores its structure, and loads it into a FiftyOne dataset using the previously defined helper functions.

What it does:

Sets the base path to the dataset (update the path if needed).
Calls explore_dataset_structure() to print a high-level view of the folder hierarchy and file counts.
Uses get_fiftyone_dataset() to construct and populate a FiftyOne dataset with images, metadata, labels, and segmentation masks.
Reloads and prints summary information about the loaded dataset to confirm successful ingestion.

[ ]:

# Code explanation: Add description here
# Define base dataset path
dataset_base_path = "/path/to/mvtec_ad_2"  # Change this to your actual dataset path

#dataset_base_path = "./dataset"  # Change this to your actual dataset path

# Explore dataset structure
dataset_structure_df = explore_dataset_structure(dataset_base_path)

# Load dataset into FiftyOne
dataset = get_fiftyone_dataset(dataset_base_path)
dataset.reload()
print(dataset)
print("Dataset loaded into FiftyOne")

Launching FiftyOne App#

Launch the FiftyOne App to explore the dataset in an interactive interface.

[ ]:

# 📌 Launch the FiftyOne App session to interactively explore the dataset
# 📌 Code explanation: TBD
session = fo.launch_app(dataset, port=5149, auto=False)

Explore image quality in MVTec AD 2#

Install image-quality-issues plugin in your FiftyOne Environment

[ ]:

!fiftyone plugins download https://github.com/jacobmarks/image-quality-issues/

Check dataset schema#

[ ]:

# Get the schema
schema = dataset.get_field_schema()

# Print the schema
for field, field_type in schema.items():
    print(f"{field}: {field_type}")

Creating a Grouped Dataset with Segmentation Masks#

This section defines a function to create a grouped dataset in FiftyOne, where each sample has two views:

The original image
Its corresponding segmentation mask

What’s included:

Imports essential libraries: os, numpy, OpenCV (cv2), and FiftyOne.
create_grouped_dataset():
- Deletes an existing grouped dataset (if it exists).
- Loads the original dataset and iterates through samples.
- Copies metadata fields such as category, defect type, and shift type.
- Saves segmentation masks (real or blank) to a masks/ subfolder next to each image.
- Uses FiftyOne’s native grouping feature to associate each image with its mask under a shared Group.

This setup is especially useful for workflows involving paired data—like image and segmentation mask combinations, enabling visual comparison and structured exploration within the FiftyOne App. Ideal for exploring tasks with the MVTec AD 2.

[ ]:

import os
import numpy as np
import fiftyone as fo
import cv2

def create_grouped_dataset(original_dataset_name, grouped_dataset_name):
    """
    Creates a grouped dataset using FiftyOne's native grouping feature.
    Each group contains:
      - The original image
      - Its corresponding segmentation mask (real or blank)
    Metadata fields are mirrored if present. Masks are saved in a 'masks/' subfolder.
    """
    # Remove existing dataset if it exists
    if grouped_dataset_name in fo.list_datasets():
        fo.delete_dataset(grouped_dataset_name)

    grouped_dataset = fo.Dataset(name=grouped_dataset_name, persistent=True, overwrite=True)
    grouped_dataset.add_group_field("group", default="image")

    original_dataset = fo.load_dataset(original_dataset_name)
    grouped_samples = []

    for sample in original_dataset.iter_samples(autosave=True, progress=True):
        group = fo.Group()

        # Mirror metadata fields if they exist
        category_label = getattr(sample, "category_label", None)
        folder_type = getattr(sample, "folder_type", None)
        defect_label = getattr(sample, "defect_label", None)
        shift_type = getattr(sample, "shift_type", None)

        sample["category_label"] = category_label
        sample["folder_type"] = folder_type
        sample["defect_label"] = defect_label
        sample["shift_type"] = shift_type
        sample.save()

        # Create image sample
        image_sample = fo.Sample(
            filepath=sample.filepath,
            group=group.element("image"),
            category_label=category_label,
            folder_type=folder_type,
            defect_label=defect_label,
            shift_type=shift_type,
        )
        if sample.metadata is not None:
            image_sample.metadata = sample.metadata

        # Get the segmentation mask if present
        segmentation_mask = None
        if hasattr(sample, "segmentation") and sample.segmentation is not None:
            segmentation_mask = getattr(sample.segmentation, "mask", None)

        # Prepare mask path
        image_dir = os.path.dirname(sample.filepath)
        mask_dir = os.path.join(image_dir, "masks")
        os.makedirs(mask_dir, exist_ok=True)
        base_filename = os.path.splitext(os.path.basename(sample.filepath))[0]
        mask_filename = f"{base_filename}_mask.png"
        segmentation_filepath = os.path.join(mask_dir, mask_filename)

        if isinstance(segmentation_mask, np.ndarray):
            # Save the provided segmentation mask
            cv2.imwrite(segmentation_filepath, segmentation_mask)
            print(f"Saved real mask: {segmentation_filepath}")
            mask_to_use = segmentation_mask
        else:
            # Create a blank mask for images without a mask
            img = cv2.imread(sample.filepath, cv2.IMREAD_UNCHANGED)
            height, width = img.shape[:2]
            mask_to_use = np.zeros((height, width), dtype=np.uint8)
            cv2.imwrite(segmentation_filepath, mask_to_use)
            print(f"Saved zero mask: {segmentation_filepath}")

        segmentation_sample = fo.Sample(
            filepath=segmentation_filepath,
            group=group.element("segmentation"),
            segmentation=fo.Segmentation(mask=mask_to_use),
            category_label=category_label,
            folder_type=folder_type,
            defect_label=defect_label,
            shift_type=shift_type,
        )
        if sample.metadata is not None:
            segmentation_sample.metadata = sample.metadata

        grouped_samples.extend([image_sample, segmentation_sample])

    grouped_dataset.add_samples(grouped_samples)
    return grouped_dataset

Generate and Load the Grouped Dataset#

In this step, we create and load a grouped version of the MVTec AD 2 dataset using the create_grouped_dataset() function defined earlier.

What it does:

Calls the function with the original dataset name ("mvtecad2") and the desired grouped dataset name ("mvtecad2_grouped").
Reloads the dataset to ensure it’s updated in memory.
Prints the dataset summary to confirm successful creation.

This grouped dataset allows us to explore each image alongside its corresponding segmentation mask using FiftyOne’s powerful group-based visualization.

[ ]:

grouped_dataset = create_grouped_dataset("mvtecad2", "mvtecad2_grouped")
grouped_dataset.reload()
print(grouped_dataset)
print("Grouped dataset created in FiftyOne")

[ ]:

import os

os.environ["FIFTYONE_ALLOW_LEGACY_ORCHESTRATORS"] = "true"
session = fo.launch_app(grouped_dataset, port=5160, auto=False)

Dynamic Grouping of Samples by Category#

This section demonstrates how to dynamically group a subset of the dataset based on ground truth labels using FiftyOne.

What it does:

Randomly selects 100 samples from the dataset using a fixed seed for reproducibility.
Groups the selected samples by the category_label.label field (e.g., bottle, cable, etc.).
Prints the media type of the resulting grouped view and the number of groups.
Updates the FiftyOne App session to display this grouped view, making it easier to explore anomalies by category.

Grouping by labels enables intuitive visual inspection and comparative analysis across different object categories.

[ ]:

# Take 100 samples and group by ground truth label
view_group_by = dataset.take(100, seed=51).group_by("category_label.label")

print(view_group_by.media_type)  # group
print(len(view_group_by))  # 8

session.view = view_group_by

Compute Visual Embeddings with CLIP and UMAP#

In this step, we leverage FiftyOne Brain and a pre-trained CLIP model to compute a visual embedding space for the dataset.

What it does:

Imports the fiftyone.brain module for computing embeddings and visual insights.
Loads a pre-trained CLIP model (ViT-B/32) from the FiftyOne Model Zoo.
Computes visual embeddings for the dataset using CLIP and projects them into 2D using UMAP.
Stores the results under the brain key "clip_vis" and embedding field "clip_embeddings".

This enables powerful visual exploration and clustering of semantically similar images in the FiftyOne App using the Brain panel.

[ ]:

import fiftyone.brain as fob
import fiftyone.zoo.models as fozm

# Load a pre-trained model (e.g., CLIP)
model = fozm.load_zoo_model("clip-vit-base32-torch")

fob.compute_visualization(
    dataset, embeddings="clip_embeddings", method="umap", brain_key="clip_vis"
)

[ ]:

print(dataset)

Exporting the Dataset in FiftyOne Format#

This section exports the annotated dataset to disk in the native FiftyOneDataset format.

What it does:

Defines a target export directory named "MVTec_AD2_FO".
Uses dataset.export() to write all samples, labels, and metadata to that directory.

This export can be reused later to reload the dataset easily or to share it with collaborators in a structured format supported by FiftyOne.

[ ]:

export_dir = "MVTec_AD2_FO"
dataset.export(
    export_dir=export_dir,
    dataset_type=fo.types.FiftyOneDataset,
)

[ ]:

from fiftyone.utils.huggingface import push_to_hub

push_to_hub(dataset, "MVTecAD2_FO")
