Using Depth Estimation Models#

In this tutorial, we will explore multiple approaches to running depth estimation models in FiftyOne. We’ll work with pre-trained models from different sources and learn how to integrate them into your workflow.

Installation#

Make sure you have FiftyOne installed in your Python environment. Additionally, you’ll need:

[ ]:

!pip install torch transformers datasets diffusers

Loading Dataset#

Note, we’ve created an in-depth tutorial in the previous notebook that discusses the methods for loading depth data into FiftyOne. As discussed in that tutorial, FiftyOne’s Heatmap class is ideal for representing depth data:

fo.Heatmap(
    map=None,           # 2D numpy array containing the data
    map_path=None,      # OR path to the heatmap image on disk
    range=None          # Optional [min, max] range for proper visualization
)

Let’s start by loading a dataset from the Hugging Face Hub.

[ ]:

from datasets import load_dataset

clevr_depth = load_dataset(
    "erkam/clevr-with-depth",
    split="train",
    cache_dir="clevr_with_depth",
)

Note how this dataset is saved:

[ ]:

clevr_depth[0]

The code takes a Hugging Face dataset containing image-depth pairs and converts it into a FiftyOne dataset for visualization and analysis.

For each sample, it saves the RGB image to disk (since FiftyOne requires file paths) and extracts the depth information from the first channel of the RGBA depth map. Each sample in the resulting FiftyOne dataset contains the path to the RGB image, the original prompt, and the depth map stored as a Heatmap visualization.

The depth values are scaled between 0 and 198, which represents the range of depth values in this dataset.

[ ]:

import fiftyone as fo
import numpy as np
from PIL import Image
import os

def convert_dataset_to_fiftyone(hf_dataset, save_dir="./clevr_depth_data"):
    """
    Converts a Hugging Face dataset containing image-depth pairs into a FiftyOne dataset.

    This function takes a dataset from Hugging Face that contains RGB images and their corresponding
    depth maps, saves the images to disk, and creates a FiftyOne dataset with the images and depth
    information stored as heatmaps.

    Args:
        hf_dataset: A Hugging Face dataset containing 'image', 'depth', and 'prompt' fields
        save_dir (str): Directory path where images and depth maps will be saved.
                       Defaults to "./clevr_depth_data"

    Returns:
        fo.Dataset: A FiftyOne dataset containing:
            - RGB images stored on disk
            - Depth maps as FiftyOne Heatmap objects (scaled 0-198)
            - Original prompts from the dataset

    Note:
        The depth maps are extracted from the first channel of the RGBA depth images
        since all channels are identical in this dataset.
    """
    # Create directories if they don't exist
    os.makedirs(os.path.join(save_dir, "images"), exist_ok=True)
    os.makedirs(os.path.join(save_dir, "depth"), exist_ok=True)

    samples = []
    # Create a FiftyOne dataset
    dataset = fo.Dataset("clevr_depth", overwrite=True, persistent=True)

    for idx, item in enumerate(hf_dataset):
        # Generate filenames
        image_filename = f"image_{idx:06d}.png"
        depth_filename = f"depth_{idx:06d}.png"

        image_path = os.path.join(save_dir, "images", image_filename)
        depth_path = os.path.join(save_dir, "depth", depth_filename)

        # Save images to disk
        item['image'].save(image_path)

        # Extract depth map from first channel (since all channels are identical in this dataset)
        depth_np = np.array(item['depth'])[:, :, 0]  # Taking channel 0

        # Create a FiftyOne sample
        sample = fo.Sample(
            filepath=image_path,
            prompt=item['prompt']
        )

        # Add depth as Heatmap with proper range
        sample["depth"] = fo.Heatmap(
            map=depth_np,
            range=[0, 198] # if you know the range of your dataset, use those values
        )
        # Add the sample to the dataset
        samples.append(sample)

    dataset.add_samples(samples)
    dataset.compute_metadata()
    return dataset

# Usage:
fo_dataset = convert_dataset_to_fiftyone(clevr_depth)

You can verify the depth map was parsed by calling the Dataset:

[ ]:

fo_dataset

And inspect the values of the first map like so:

[ ]:

fo_dataset.first()['depth']

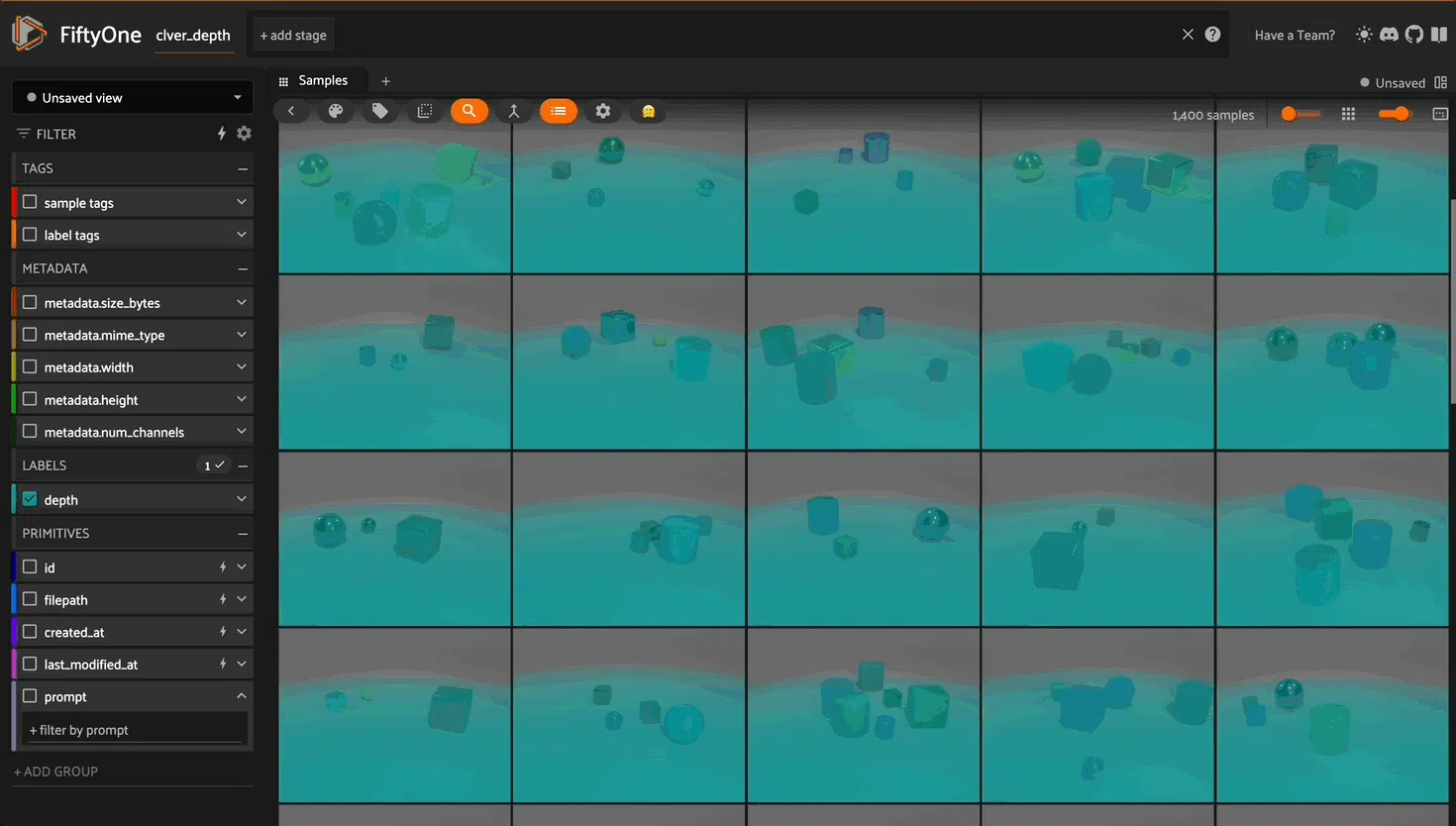

Refer to our guide for loading depth data for other examples and more detail. Once the dataset has been parsed to FiftyOne format you can launch the app and inspect its contents

[ ]:

fo.launch_app(fo_dataset)

Using Depth Estimation Models in FiftyOne#

As a Zoo Model#

You can load transformers depth estimation models directly from the FiftyOne Model Zoo!

To load a transformers depth estimation model from the zoo, specify depth-estimation-transformer-torch as the first argument, and pass in the model’s name or path as a keyword argument:

model = foz.load_zoo_model(
    "depth-estimation-transformer-torch",
    name_or_path="path/to-model",
)

Any model that can be run in a Hugging Face pipeline for the depth-estimation task can be loaded as a Zoo model. A non-exhaustive list of such models includes:

Refer to the Hugging Face documentation on Monocular depth estimation to stay up to date on which models can be run in a pipeline.

Note: When selecting a model, it’s advisable to refer to its model card and determine whether it’s suitable for your dataset and use case.

Below is an example of using the depth-anything/Depth-Anything-V2-Small-hf on the dataset we parsed earlier:

[ ]:

import torch

import fiftyone as fo
import fiftyone.zoo as foz

dav2_model = foz.load_zoo_model(
    "depth-estimation-transformer-torch",
    name_or_path="depth-anything/Depth-Anything-V2-Small-hf",
    device="cuda" if torch.cuda.is_available() else "cpu"
    )

[ ]:

fo_dataset.apply_model(
    dav2_model,
    label_field="dav2_small",
    )

To verify:

[ ]:

fo_dataset.first()["dav2_small"]

Hugging Face Model That’s Not Compatible with Integration#

Admittedly, it’s not always clear which Hugging Face model can be run as part of a pipeline.

A good first entry point is to just try it and pass the model name into name_or_path in the load_zoo_model method. If a Hugging Face model is not compatible with the integration, you’ll see an error to the effect of:

ValueError: Unrecognized model in <whatever-model-name>

In this case, you will need to run the model manually. All this means is that you need to instantiate the model, its processor, and write some logic to parse the model output into a FiftyOne Heatmap.

Here’s an example of how you can do this:

[ ]:

import numpy as np
import torch
from PIL import Image
from transformers import DPTImageProcessor, DPTForDepthEstimation
import fiftyone as fo

device = "cuda" if torch.cuda.is_available() else "cpu"

dpt_processor = DPTImageProcessor.from_pretrained("Intel/dpt-beit-large-512")

dpt_model = DPTForDepthEstimation.from_pretrained(
    "Intel/dpt-beit-large-512",
    device_map=device
    )

dpt_model.eval()

file_paths = fo_dataset.values("filepath") # a list of all filepaths in Dataset

dpt_depth_maps = [] # to store the depth maps

for img in file_paths:

    image = Image.open(img).convert("RGB")

    inputs = dpt_processor(images=image, return_tensors="pt").to(device)

    with torch.no_grad():
        outputs = dpt_model(**inputs)
        predicted_depth = outputs.predicted_depth

    # interpolate to original size
    prediction = torch.nn.functional.interpolate(
        predicted_depth.unsqueeze(1),
        size=image.size[::-1],
        mode="bicubic",
        align_corners=False,
        )

    output = prediction.squeeze().cpu().numpy()

    formatted = (output * 255 / np.max(output)).astype("uint8")

    fo_depth_map = fo.Heatmap(map=formatted)

    dpt_depth_maps.append(fo_depth_map)


fo_dataset.set_values("dpt_beit_maps", dpt_depth_maps)

[ ]:

fo_dataset.first()["dpt_beit_maps"]

The majority of the logic in the code above comes directly from the model card.

The only FiftyOne-specific aspects are just grabbing the filepaths for the Samples, parsing the model output as numpy arrays, loading it as a FiftyOne Heatmap, and adding it as a Field to the Dataset.

Plugin#

The FiftyOne community contributes Plugins which can make it easy to run a depth estimation model on your Dataset. For example, there is a plugin for DepthPro.

To use this plugin, download it and install the requirements:

[ ]:

!fiftyone plugins download https://github.com/harpreetsahota204/depthpro-plugin

[ ]:

!fiftyone plugins requirements @harpreetsahota/depth_pro_plugin --install

Then instantiate the operator:

[ ]:

import fiftyone.operators as foo

depthpro = foo.get_operator("@harpreetsahota/depth_pro_plugin/depth_pro_estimator")

You’ll need to start a delegated service, which you can do by opening your terminal and executing the following command:

fiftyone delegated launch

And then run the plugin on the dataset:

[ ]:

await depthpro(
    fo_dataset,
    depth_field="depthpro_map",
    depth_type="inverse", # or "regular" see the plugin repo for more details
    delegate=True
    )

You may have to call the reload method of the dataset if you don’t see your field:

[ ]:

fo_dataset.reload()

[ ]:

fo_dataset.first()["depthpro_map_depth"]

🧨 Diffusers Depth Estimation#

You can also use the Diffusers library for zero-shot prediction of depth maps.

Start by installing the library and instantiating the model, in this case we’ll use Marigold Depth model.

[ ]:

!pip install diffusers

[ ]:

import diffusers
import torch

device = "cuda" if torch.cuda.is_available() else "cpu"

marigold_pipe = diffusers.MarigoldDepthPipeline.from_pretrained(
    "prs-eth/marigold-depth-v1-0",
    variant="fp16",
    torch_dtype=torch.float16
    ).to(device)

marigold_pipe.set_progress_bar_config(disable=True) # disable progress bar

With the model instantiated, we can iterate through the filepaths of our Dataset and run inference. This is an example of a model that outputs a png depth map. We’ll save the depth map to disk and point to the filepath of the png via the map_path argument of Heatmap:

[ ]:

file_paths = fo_dataset.values("filepath") # a list of all filepaths in Dataset

marigold_depth_maps = [] # to store the depth maps

for img in file_paths:

    # Create new filename with _marigold_map suffix, save wherever you want
    base_path = os.path.splitext(img)[0]  # Remove extension
    depth_map_path = f"{base_path}_marigold_map.png"

    image = diffusers.utils.load_image(img)

    depth_estimate = marigold_pipe(image)

    depth_map = marigold_pipe.image_processor.visualize_depth(depth_estimate.prediction)
    depth_map[0].save(depth_map_path)

    # Alternatively, you can extract a 16 bit depth map
    # depth_16bit = marigold_pipe.image_processor.export_depth_to_16bit_png(depth_estimate.prediction)

    fo_depth_map = fo.Heatmap(map_path=depth_map_path)

    marigold_depth_maps.append(fo_depth_map)

fo_dataset.set_values("marigold_depth", marigold_depth_maps)

[ ]:

fo_dataset.first()['marigold_depth']

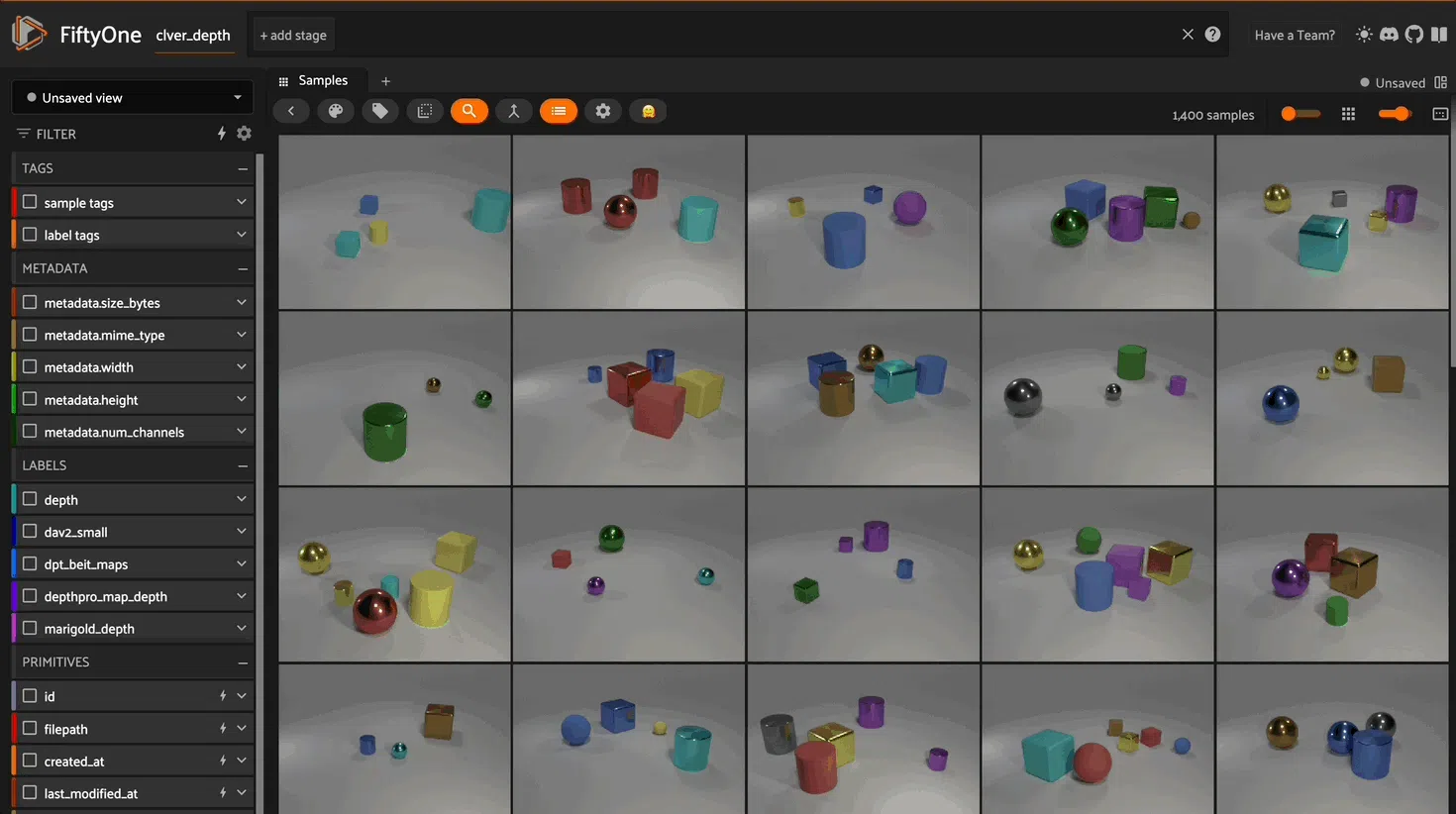

Now, let’s launch the FiftyOne app and inspect all the depth maps we created.

fo.launch_app(fo_dataset)
