ENVI Spectral Viewer#

A FiftyOne plugin for exploring hyperspectral imagery in ENVI format. Click any pixel on a hyperspectral image to instantly plot its full spectral signature — reflectance vs. wavelength — in an interactive side panel. Supports custom RGB band rendering to explore the data from different spectral perspectives.

ENVI Spectral Viewer

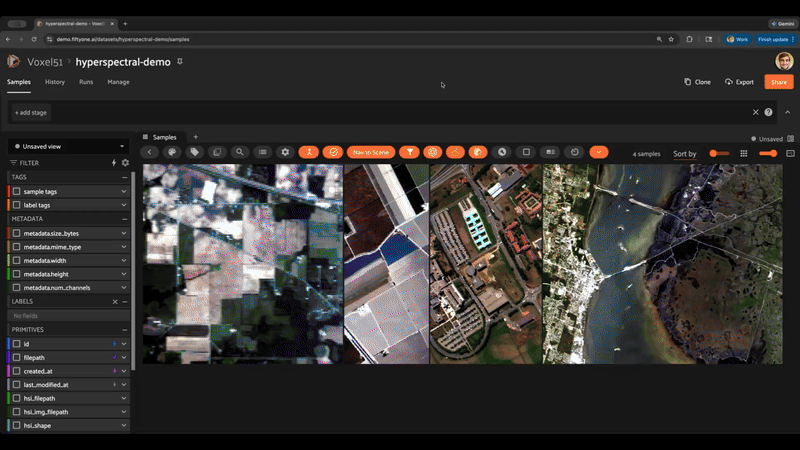

Demo

Overview#

ENVI is the standard file format for hyperspectral and multispectral imagery in remote sensing and scientific imaging. Each ENVI dataset consists of a plain-text .hdr header file paired with a flat binary image cube containing hundreds of spectral bands per pixel.

This plugin lets you:

  • Click any pixel on a hyperspectral image to plot its full spectral profile (reflectance vs. wavelength)

  • Re-render the RGB composite by dragging sliders to map any three bands to R, G, B

  • Works with local and cloud-hosted ENVI files (S3, GCS, Azure via FiftyOne Enterprise)

  • Zero required dependencies — uses a built-in ENVI BIL reader; install spectral for full BSQ/BIP/compressed format support

Installation#

fiftyone plugins download https://github.com/ehofesmann/envi-spectral-viewer

Optional — install the spectral package for full ENVI format support (BSQ, BIP, compressed):

pip install spectral

Without spectral, the plugin supports BIL-interleaved ENVI files (the most common format). Attempting to open a BSQ or BIP file without spectral installed will raise a clear error with install instructions.

FiftyOne Enterprise users: See the custom plugins documentation for how to make additional Python packages like spectral available to your deployment.

Requirements#

Requirement

Notes

fiftyone

Core framework

numpy

Included with FiftyOne

Pillow

Required for RGB re-rendering

spectral (optional)

Full ENVI format support (BSQ/BIP)

Sample structure#

Each FiftyOne sample must have the following fields:

Field

Type

Description

filepath

StringField

Path to a display image (PNG/JPEG) — typically a pseudo-RGB render of the cube

hsi_filepath

StringField

Path to the ENVI .hdr header file

hsi_img_filepath

StringField

Path to the ENVI binary data file (.img, .dat, etc.)

hsi_shape

ListField

[rows, cols, bands] — shape of the hyperspectral cube

hsi_scale_factor

IntField

Upscale factor between the display image and the ENVI cube (e.g. 4 if the PNG is 4× upscaled)

wavelengths

ListField

List of wavelength values in nm, one per band

Quickstart#

A synthetic demo dataset generator is included in the data/ directory. It creates a 512×512×200-band ENVI scene with four spectral regions (water, vegetation, soil, urban) and loads it into FiftyOne:

pip install fiftyone numpy Pillow
python data/create_synthetic_dataset.py

Then launch FiftyOne:

import fiftyone as fo

dataset = fo.load_dataset("envi-synthetic-demo")
fo.launch_app(dataset)

Open any sample in the modal, then open the Spectral Profile panel. Click a pixel to see its spectral signature plotted immediately.

Usage#

Spectral profile#

  1. Open a sample in the modal

  2. Open the Spectral Profile panel from the panel selector

  3. Click any pixel on the image — the spectral plot updates instantly

RGB band rendering#

In the Spectral Profile panel, use the R / G / B sliders to select which bands map to each channel, then click Render to update the displayed image.

Loading your own ENVI data#

import fiftyone as fo

dataset = fo.Dataset(name="my-hsi-dataset", persistent=True)

sample = fo.Sample(
    filepath="/path/to/display.png",       # pseudo-RGB render
    hsi_filepath="/path/to/scene.hdr",
    hsi_img_filepath="/path/to/scene.img",
    hsi_shape=[512, 512, 224],             # [rows, cols, bands]
    hsi_scale_factor=1,
    wavelengths=[400.0, 410.0, ...],       # one value per band
)

dataset.add_sample(sample)
fo.launch_app(dataset)

Operators#

Operator

Description

get_spectral_profile

Reads a pixel’s spectral signature from the ENVI cube and sends it to the panel

render_rgb_image

Re-renders the display image using user-selected band indices

load_hsi_image

Loads the display image and sends wavelength metadata to the panel

show_hsi_data

JS operator — receives data from Python and updates panel state

Cloud support#

For cloud-hosted ENVI files (S3, GCS, Azure), the plugin:

  1. Uses FiftyOne Enterprise media cache when available — handles download deduplication and cache eviction automatically

  2. Falls back to downloading to a local temp directory for non-Teams installs with cloud paths

Local files are passed through with zero overhead.
