Step 2: Analyzing with Model Evaluation Panel#

In our last step we showed some basic ways on how to evaluate models. In this step, we will show how to take it even further with the Model Eval Panel in the app. With the Model Eval Panel you can:

See all evaluation runs on a dataset
View summary statistics of each run
Filter dataset based on FP, TP, and more
Analyze class-wise evaluation metrics and filter based on them
View confusion matrices and histograms of evaluation results

Let’s hop into an example to see how to get started!

[1]:

import fiftyone as fo
import fiftyone.zoo as foz

dataset = foz.load_zoo_dataset("quickstart")

# View summary info about the dataset
print(dataset)

Dataset already downloaded
Loading existing dataset 'quickstart'. To reload from disk, either delete the existing dataset or provide a custom `dataset_name` to use
Name:        quickstart
Media type:  image
Num samples: 200
Persistent:  False
Tags:        []
Sample fields:
    id:                fiftyone.core.fields.ObjectIdField
    filepath:          fiftyone.core.fields.StringField
    tags:              fiftyone.core.fields.ListField(fiftyone.core.fields.StringField)
    metadata:          fiftyone.core.fields.EmbeddedDocumentField(fiftyone.core.metadata.ImageMetadata)
    created_at:        fiftyone.core.fields.DateTimeField
    last_modified_at:  fiftyone.core.fields.DateTimeField
    ground_truth:      fiftyone.core.fields.EmbeddedDocumentField(fiftyone.core.labels.Detections)
    uniqueness:        fiftyone.core.fields.FloatField
    predictions:       fiftyone.core.fields.EmbeddedDocumentField(fiftyone.core.labels.Detections)
    eval_tp:           fiftyone.core.fields.IntField
    eval_fp:           fiftyone.core.fields.IntField
    eval_fn:           fiftyone.core.fields.IntField
    eval_high_conf_tp: fiftyone.core.fields.IntField
    eval_high_conf_fp: fiftyone.core.fields.IntField
    eval_high_conf_fn: fiftyone.core.fields.IntField

Let’s quickly rerun evaluation in case we do not have it from the previous step:

[2]:

results = dataset.evaluate_detections(
    "predictions",
    gt_field="ground_truth",
    eval_key="eval",
    compute_mAP=True,
)

Evaluating detections...
 100% |█████████████████| 200/200 [7.2s elapsed, 0s remaining, 18.5 samples/s]
Performing IoU sweep...
 100% |█████████████████| 200/200 [2.3s elapsed, 0s remaining, 74.4 samples/s]

[3]:

from fiftyone import ViewField as F

# Only contains detections with confidence >= 0.75
high_conf_view = dataset.filter_labels("predictions", F("confidence") > 0.75, only_matches=False)

results = high_conf_view.evaluate_detections(
    "predictions",
    gt_field="ground_truth",
    eval_key="eval_high_conf",
    compute_mAP=True,
)

Evaluating detections...
 100% |█████████████████| 200/200 [1.3s elapsed, 0s remaining, 127.8 samples/s]
Performing IoU sweep...
 100% |█████████████████| 200/200 [924.4ms elapsed, 0s remaining, 216.4 samples/s]

[11]:

dataset.load_evaluation_view("eval")

[11]:

Name:        quickstart
Media type:  image
Num samples: 200
Persistent:  False
Tags:        []
Sample fields:
    id:                fiftyone.core.fields.ObjectIdField
    filepath:          fiftyone.core.fields.StringField
    tags:              fiftyone.core.fields.ListField(fiftyone.core.fields.StringField)
    metadata:          fiftyone.core.fields.EmbeddedDocumentField(fiftyone.core.metadata.ImageMetadata)
    created_at:        fiftyone.core.fields.DateTimeField
    last_modified_at:  fiftyone.core.fields.DateTimeField
    ground_truth:      fiftyone.core.fields.EmbeddedDocumentField(fiftyone.core.labels.Detections)
    uniqueness:        fiftyone.core.fields.FloatField
    predictions:       fiftyone.core.fields.EmbeddedDocumentField(fiftyone.core.labels.Detections)
    eval_tp:           fiftyone.core.fields.IntField
    eval_fp:           fiftyone.core.fields.IntField
    eval_fn:           fiftyone.core.fields.IntField
    eval_high_conf_tp: fiftyone.core.fields.IntField
    eval_high_conf_fp: fiftyone.core.fields.IntField
    eval_high_conf_fn: fiftyone.core.fields.IntField

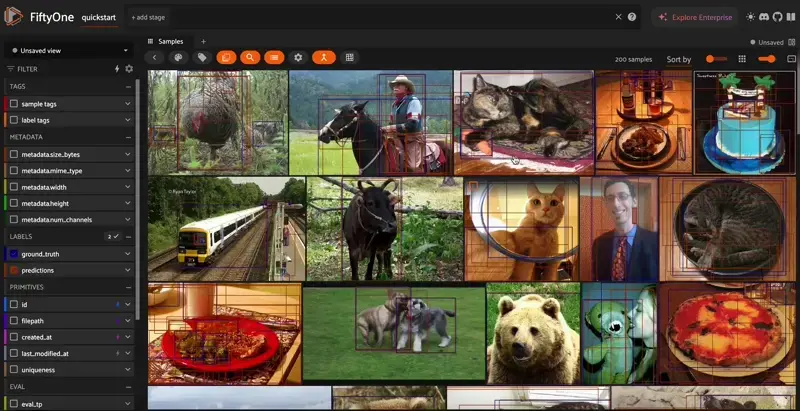

Now we can open up our dataset and view are results in the Model Eval Panel! I recommend opening the app in browser for the best experience at http://localhost:5151/!

[ ]:

session = fo.launch_app(dataset)

Explore the Model Evaluation Panel#

Now that you have the Model Evaluation Panel open, you can explore all the powerful features it offers:

Browse evaluation runs: Switch between different evaluation runs (like eval and eval_high_conf) to compare model performance
Analyze metrics: View precision, recall, F1-score, and mAP metrics for your models
Class-wise analysis: Examine performance metrics for individual classes to identify which objects your model struggles with
Confusion matrices: Visualize classification errors and understand common misclassifications
Interactive filtering: Filter your dataset to show only true positives, false positives, false negatives, or specific confidence ranges
Histogram analysis: Explore distributions of confidence scores, IoU values, and other evaluation metrics
Sample-level insights: Click on specific samples to understand why certain predictions were classified as TP, FP, or FN

Take some time to explore these features and gain deeper insights into your model’s performance. The Model Evaluation Panel makes it easy to identify patterns, debug model issues, and make data-driven decisions for model improvement!
